Skip to content Skid Steer Loaders
Rato
375kg
1480 mm

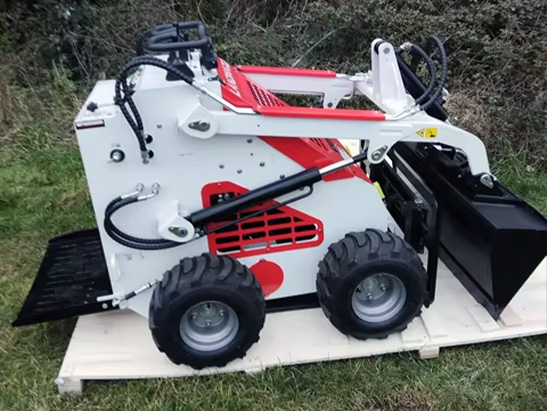

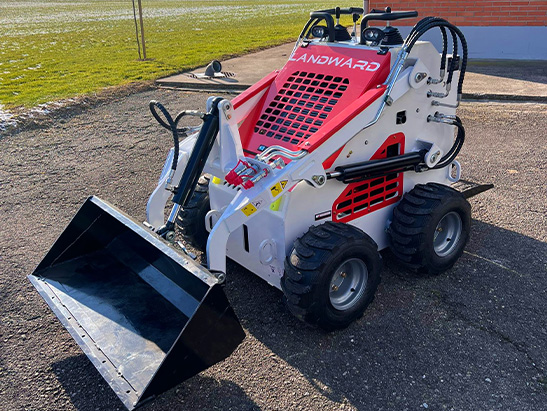

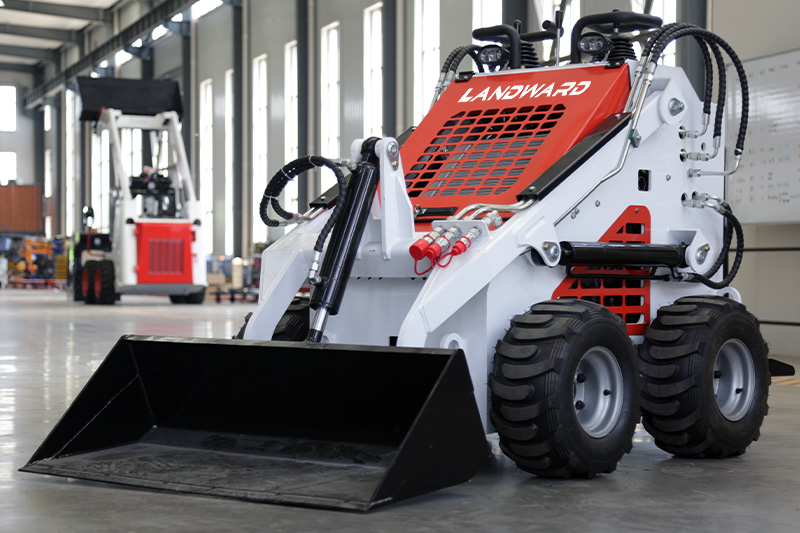

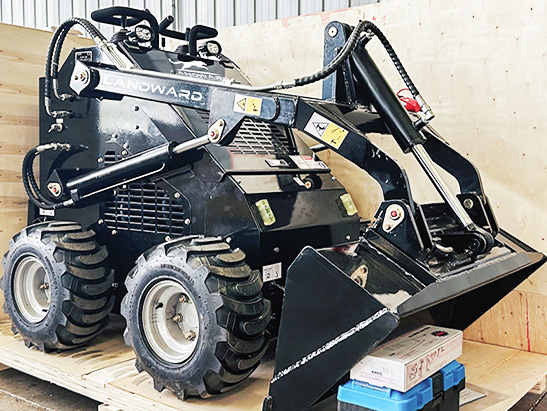

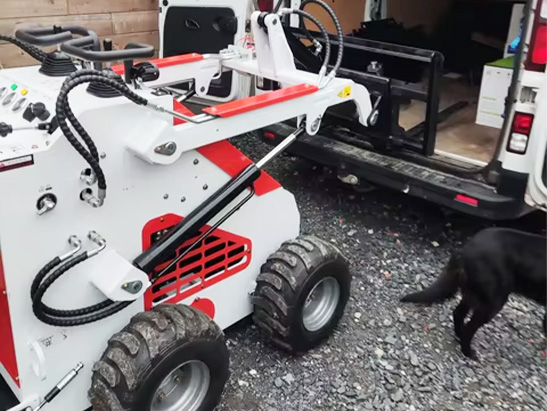

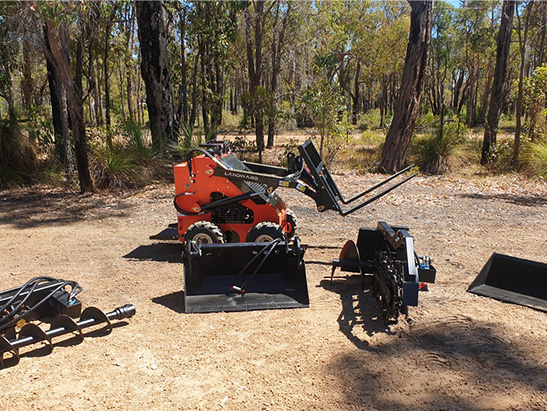

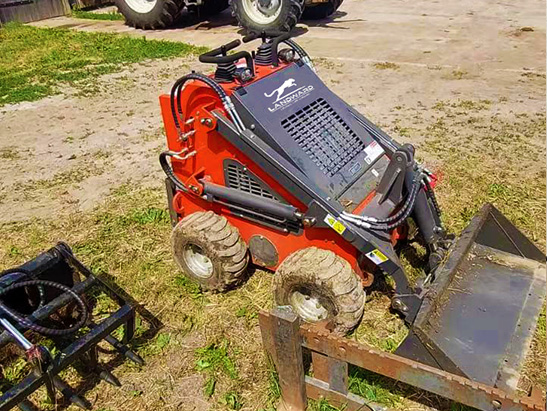

The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.

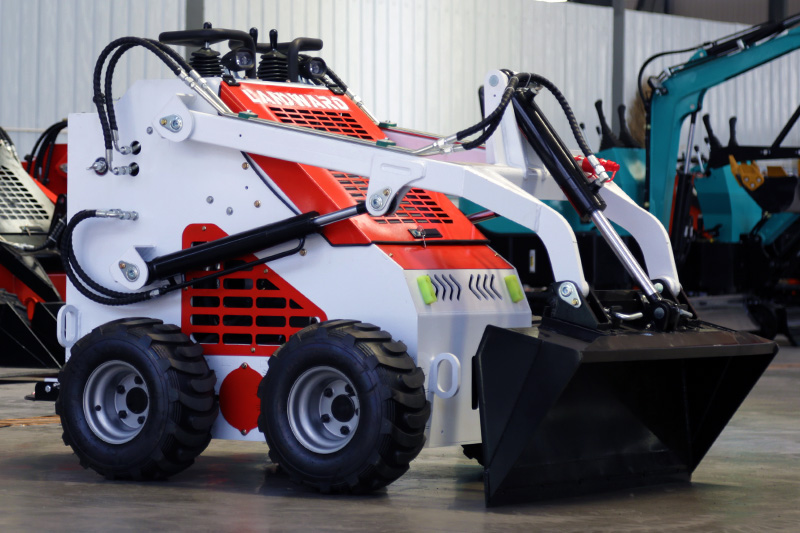

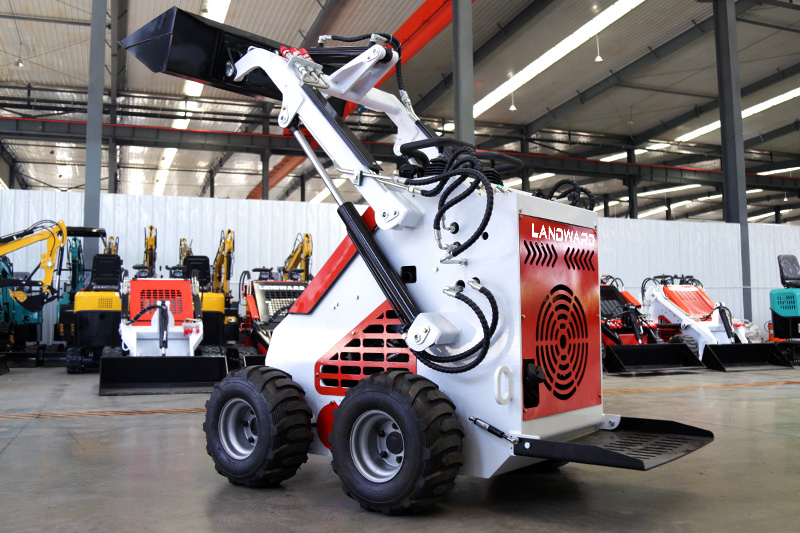

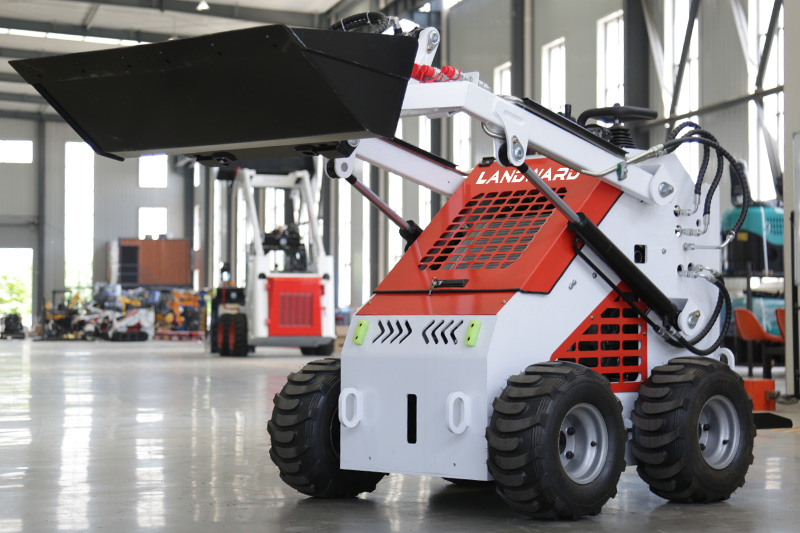

| Model | Mini Skid Loader S480 |
| Lifting Capacity (KG) | 375 |
| Bucket Capacity（m³） | 0.15 |
| Working Speed（km/h) | 0-6 |
| Net Weight（KG） | 890 |
| Engine Type | Rato R740 |
| Engine Capacity（kw/Hp) | 24hp |
| Start Mode | Electric |
| Rotation speed per minute（rpm) | 3600 |
| Maximum torque NM/rpm | 45/2500 |
| Cooling method | Air-cooled |
| Fuel/Fuel tank capacity | Gasoline 95#/20L |
| System Pressure | 17Mpa |
| Lift time | 4s |
| Tipping Bucket time | 1.3s |
| Landing time | 3s |
| Max Lifting Height | 2100 mm |
| Max. Dumping Height | 1480 mm |
| Max. Dumping Distance | 430 mm |
| Hydraulic oil tank capacity（L） | 23 |
| Standard Tires | 18*8.5-8 |
| Electrical system（V） | 12 |
| Battery Capacity（Ah) | 36 |
| Drive System | Hydraulic |
| Overall Dimensions（mm） | 1750*1120*1250mm |
